Well Pressure Tank Sizing & Buying Guide
If your pump is kicking on every time someone flushes a toilet, your well pressure tank is probably too small. I dug into this way more than I expected to, and it turns out most of what’s floating around online is either a manufacturer trying to sell you their biggest tank or a forum thread from 2014. So here’s the actual breakdown: what a well pressure tank does, how to size one for your pump, and six real tanks worth considering, with real specs and real prices, not just “call for a quote.”
If you’re also working through your power setup, the same “size it right the first time” logic applies. My guide on how to go off-grid with solar walks through it.

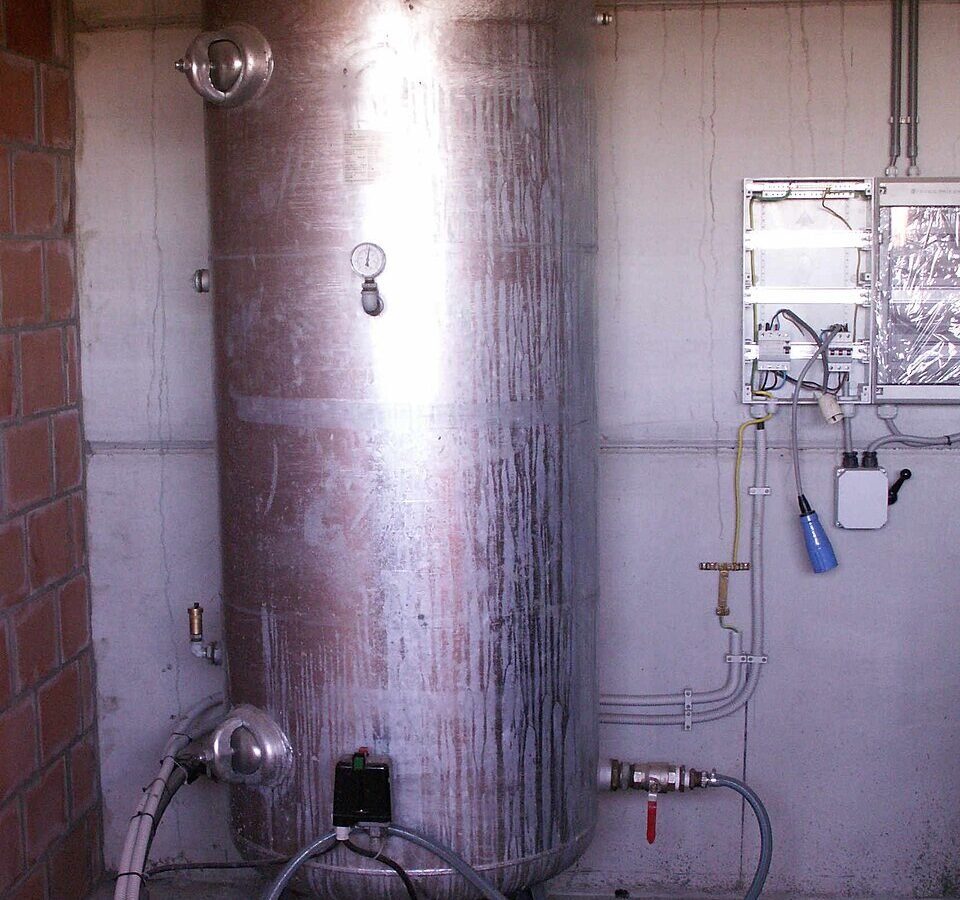

Photo: KVDP, Wikimedia Commons (public domain)
What a well pressure tank actually does
A well pressure tank stores pressurized water so your pump doesn’t run constantly. It fills the tank, shuts off, and lets the tank’s stored pressure supply your house until the pressure drops low enough to kick the pump back on. That stored, usable water between “full” and “pump kicks on again” is called drawdown, and it’s honestly the only number that matters here. Total tank volume gets slapped on the box in big letters, but drawdown is what you’re actually buying.
Undersize the tank and your pump short cycles, turning on and off every couple minutes instead of running a full cycle. That’s brutal on a pump motor. I found sources putting typical pump life at around a million cycles before the motor gives out, and an undersized tank can burn through those cycles years faster than it should. A $200 tank that forces early pump replacement isn’t actually the cheap option.
Sizing by pump GPM
The rule of thumb I kept seeing repeated by people who actually install these things: multiply your pump’s rated GPM by at least one minute of run time to get your minimum tank size, and go bigger if you can. A 10 GPM pump wants at least a 32 to 40 gallon tank with a good chunk of drawdown, not a 20 gallon unit that’ll have your pump gasping every ninety seconds.
If you don’t know your pump’s GPM off the top of your head, it’s usually stamped right on the pump housing or in your well completion report. Worth digging up before you buy anything.
Bladder, diaphragm, or fiberglass
Every well pressure tank on this list falls into one of three construction types, and I figured I should explain the difference before throwing six tank names at you.
Bladder tanks use a rubber bladder inside a steel shell to keep the air charge separate from your water. Diaphragm tanks do basically the same job, just with a diaphragm splitting the tank into two chambers instead. Honestly, I wouldn’t stress over this distinction much. Both are steel, both hold up fine, and both show up constantly in the picks below, so you’re not really choosing between them so much as just noting which one your tank happens to be.
Fiberglass composite tanks skip steel entirely, which means no rust, ever. That’s the whole pitch. You pay a real premium per gallon of drawdown for it though, and I’ll show you exactly how much when I get to the Wellmate pick below.
The six tanks I’d actually consider
I looked at close to a dozen tanks across steel bladder, steel diaphragm, and fiberglass composite construction before narrowing this down. These six cover the real range: budget starter homes, the “just replace what’s there” standard pick, big houses with high flow pumps, and corrosive water situations where steel just isn’t going to cut it.
WaterWorker HT-20B, the budget starter pick
Twenty gallons, about 6.2 gallons of usable drawdown, and a real $199 price tag at Home Depot. This is the tank for a small home or cabin with one or two bathrooms and a modest pump. It’s not fancy, it’s a steel bladder tank made by the same manufacturer as Amtrol under a different label, and it gets the job done without breaking the bank.
Amtrol Well-X-Trol WX-203, the one pros actually install
I kept running into this exact tank over and over in my research, and there’s a reason. It’s the industry standard 32 gallon pick, backed by a 7 year warranty that’s genuinely longer than most competitors offer, and it’s got a thick butyl diaphragm that Amtrol’s been refining since they basically invented the pre-pressurized well tank category back in 1963. It costs more than the WaterWorker option, sitting around $556, but the extra $200 or so buys you a tank people trust enough to install in their own homes for a living.
WaterWorker HT-32B, the best value pick
If the WX-203’s price tag is more than you want to spend but you still want 32 gallons of tank, this is your move. Same capacity, nearly identical drawdown at 9.89 gallons, and it comes in around $330. You’re trading Amtrol’s stainless steel connection and antimicrobial liner for a slightly more basic build, but for most homes that’s a totally reasonable trade.
Amtrol Well-X-Trol WX-302, for bigger homes and high flow pumps
Eighty six gallons is a lot of tank, and at 123 pounds it’s not something you’re carrying down a staircase by yourself. This is built for larger homes, farms, or anywhere running a 10+ GPM pump that would blow through a smaller tank’s drawdown in seconds. It’ll run you right around $1,000, which sounds steep until you realize you’re not replacing your pump every couple years from short cycling.
Goulds HydroPro V60, if you’re already running a Goulds pump
This one’s a solid all around 20 gallon tank on its own merits, comparable to the Amtrol WX-202 in most ways that matter. But where it really makes sense is if you’ve already got a Goulds pump in the ground. Matching brands means one less thing to think about when you’re ordering parts or calling for warranty support down the road. Pricing on this one is genuinely all over the place depending on the retailer, so check current pricing before you commit.
Wellmate WM-9, for corrosive water and coastal properties
Here’s the honest tradeoff on this one. Fiberglass construction means it will never rust, period, which matters a lot if you’re near the coast, dealing with acidic well water, or just tired of watching steel tanks fail early in corrosive conditions. But you’re paying for that peace of mind. At roughly $705 for 8.9 gallons of drawdown, this tank costs about double per gallon of usable water compared to any steel tank on this list. If corrosion is a real threat where you live, it’s worth it. If it’s not, you’re better off putting that money toward one of the steel options and a bigger tank overall.
Frequently asked questions
How do I know what size well pressure tank I need? Grab your pump’s rated GPM and multiply it by at least one minute of run time, that’s your minimum tank size. Then go check the drawdown spec on whatever tank you’re eyeing, not just the total volume number on the box. Drawdown is the number that actually decides how often your pump cycles, so don’t let a big “gallons” number on the label fool you.
How long do well pressure tanks last? I’d expect a decent steel tank to run 10 to 15 years, and honestly the warranties back that up. The Amtrol Well-X-Trol line backs theirs with 7 years, which tells you they’re confident it’ll outlive that. Fiberglass tanks like the Wellmate WM-9 can go even longer since there’s no steel in there to eventually corrode.
Can I install a well pressure tank myself? Yeah, for most of these. They connect with standard NPT fittings, so you’re looking at a pipe wrench and some Teflon tape, nothing exotic. If you’re already comfortable with basic plumbing, it’s a totally doable weekend job. Where I’d personally call in a pro is tight crawlspace access or if you’re not confident reading your existing system.
Can I install a well pressure tank myself? Yeah, for most of these. They connect with standard NPT fittings, so you’re looking at a pipe wrench and some Teflon tape, nothing exotic. If you’re already comfortable with basic plumbing, it’s a totally doable weekend job. Where I’d personally call in a pro is tight crawlspace access or if you’re not confident reading your existing system. I walk through the full swap, including the precharge step people skip, in the well pressure tank replacement cost guide.
The bottom line
Don’t buy a well pressure tank on total volume alone, buy on drawdown for your specific pump. For most homes with a standard 2 to 3 bath setup and a pump under 10 GPM, the WX-203 or the HT-32B covers you well. Go bigger if you’ve got a high flow pump or a big household, and only reach for fiberglass if corrosion is an actual problem you’re dealing with, not just a nice to have.
One thing worth knowing if your tank lives somewhere that gets cold: the pressure switch connects to the plumbing through a skinny quarter inch tube, and that tube is usually the first thing in the whole system to freeze. When it does, the pump won’t run and it looks exactly like a dead pump. I went through where a frozen well pipe actually starts separately, and it’s a much cheaper fix than the pump.
If you’re buying the property rather than replacing a tank you already own, the pressure tank is one of the things a proper well inspection looks at, and the inspection has a few traps of its own. I went through those in well inspection cost.
Short cycling is also the quiet reason a lot of pumps die early, which is why I flag the tank as a suspect in the well pump replacement cost guide whenever somebody’s pump failed young.

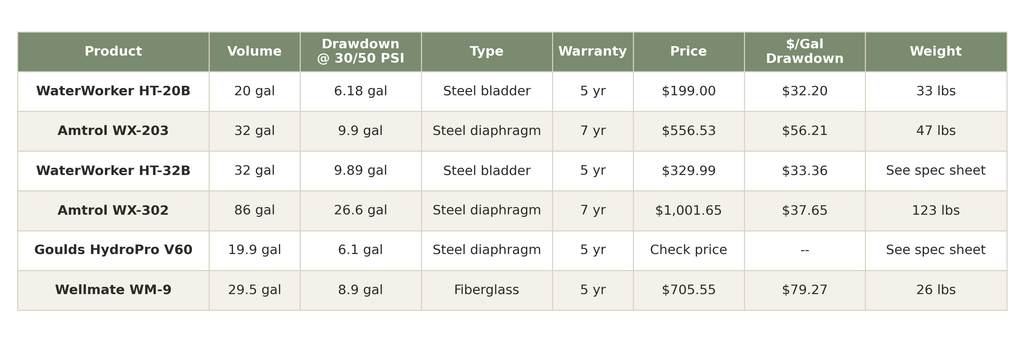

Full spec comparison
| Product | Volume | Drawdown | Type | Warranty | Price | $/Gal | Weight |
|---|---|---|---|---|---|---|---|
| WaterWorker HT-20B | 20 gal | 6.18 gal | Steel bladder | 5 yr | $199.00 | $32.20 | 33 lbs |
| Amtrol Well-X-Trol WX-203 | 32 gal | 9.9 gal | Steel diaphragm | 7 yr | $556.53 | $56.21 | 47 lbs |
| WaterWorker HT-32B | 32 gal | 9.89 gal | Steel bladder | 5 yr | $329.99 | $33.36 | Check spec sheet |
| Amtrol Well-X-Trol WX-302 | 86 gal | 26.6 gal | Steel diaphragm | 7 yr | $1001.65 | $37.65 | 123 lbs |
| Goulds HydroPro V60 | 19.9 gal | 6.1 gal | Steel diaphragm | 5 yr | Check Current Price | — | Check spec sheet |
| Wellmate WM-9 | 29.5 gal | 8.9 gal | Fiberglass composite | 5 yr | $705.55 | $79.27 | 26 lbs |
Prices current as of September 2026 and pulled from manufacturer listings and major retailers. Always double check current pricing before buying since these move around, especially with manufacturers that don’t publish set retail prices.
